A simple explanation of the Monte Carlo Data Set and Data Compose Smart Shape in PEGA

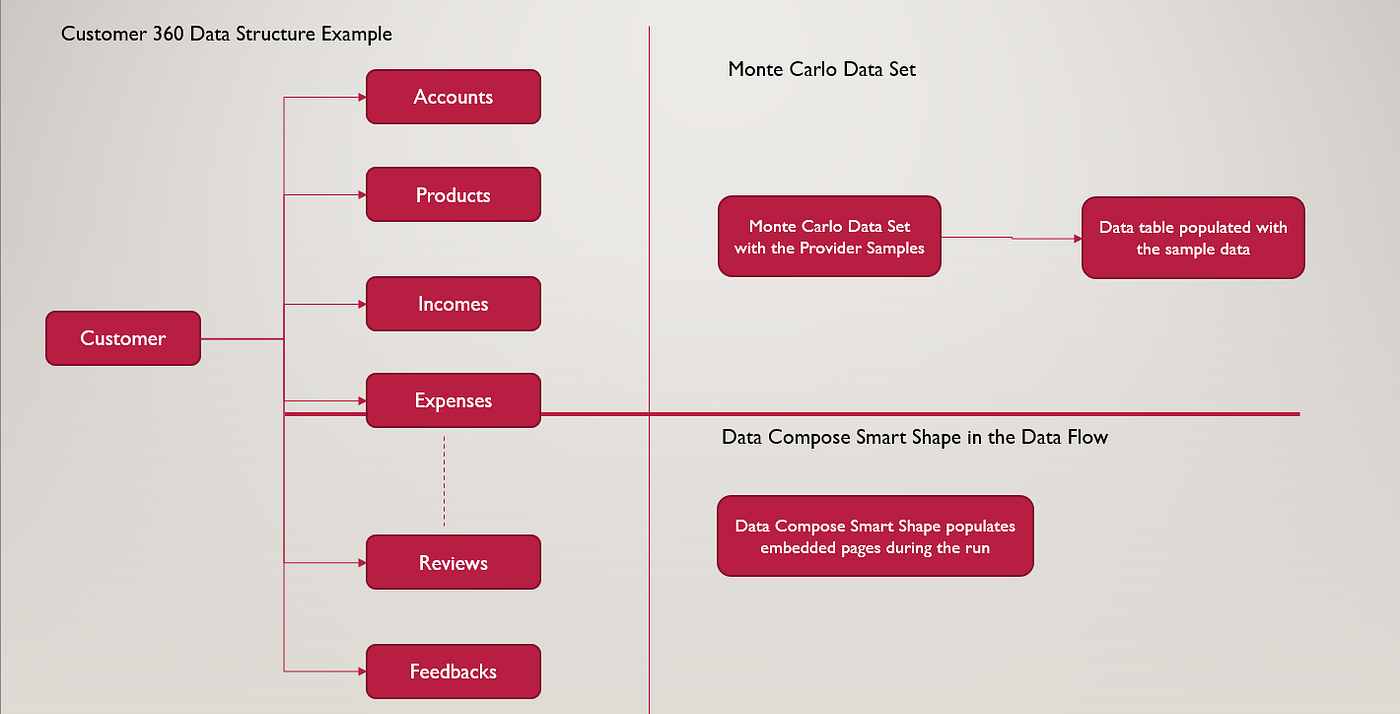

In this post, let’s understand the usage of the Monte Carlo data set and the Data Compose smart shape in the data flow. A customer entity record in an organization will have many sub-entities like accounts, products, incomes, expenses, etc... There will be compliance-related concerns around customer data usage in lower environments. The Monte Carlo data set usage addresses this problem and generates sample data records with the providers like Customer First Name, Last Name, ID, etc…

To display the customer information in a case/ to refer to the customer record as part of processing — we need to combine the data from multiple data sources. The data compose smart shape in a data flow helps to combine the data from various sources to populate the embedded pages during runtime in the customer's primary page.

Let's take a simple example with a scenario, we have the following tables:

Customer main table — CustID, First Name, Last Name
Customer employment table — EmpID, CustID, EmployerName

It is a one-to-many relationship. One customer can have many employment records. Let’s say in production, these tables get the data feed from an external system. For lower environments, the organization recommended populating the sample records to test the functionalities. In this scenario, let’s populate these tables using the Monte Carlo data sets.

Step 1: Configure the customer and its employment data tables

Note: It is out of scope from this article's perspective — to create a sample application and the respective data classes.

The two data table classes as below

Customer Table

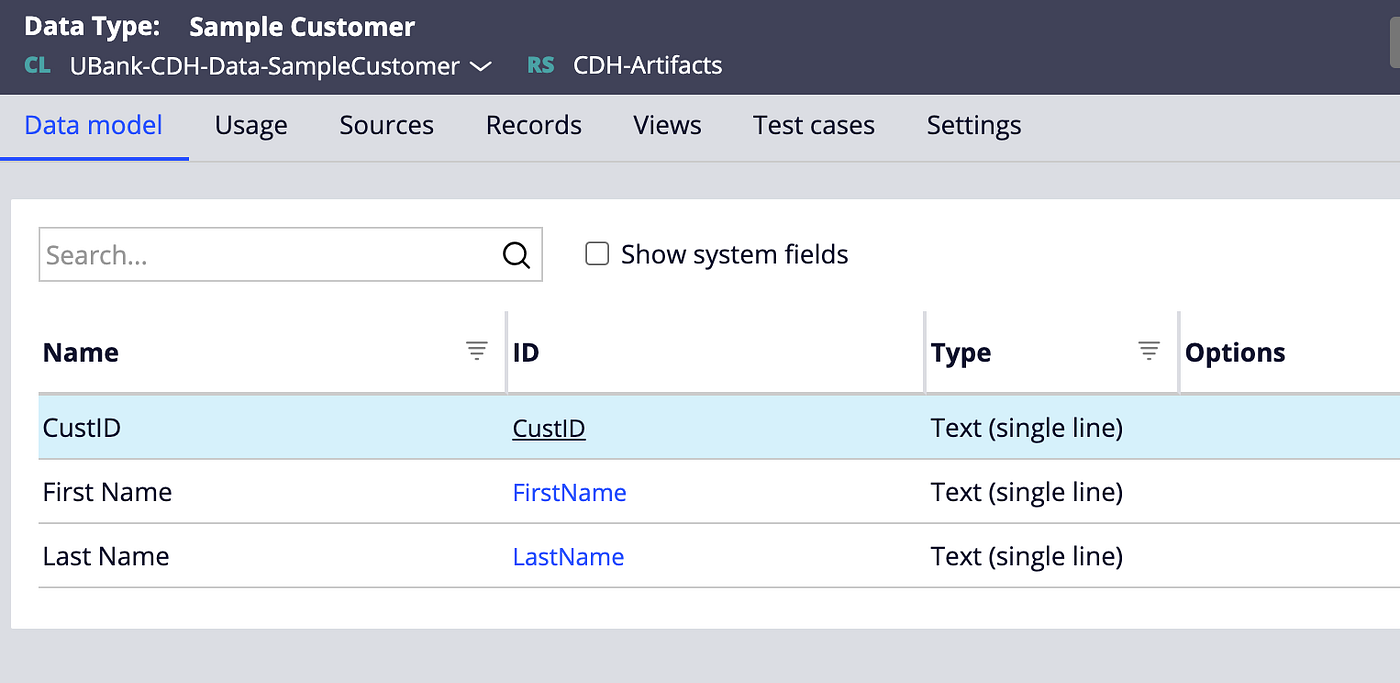

Required properties in the data model

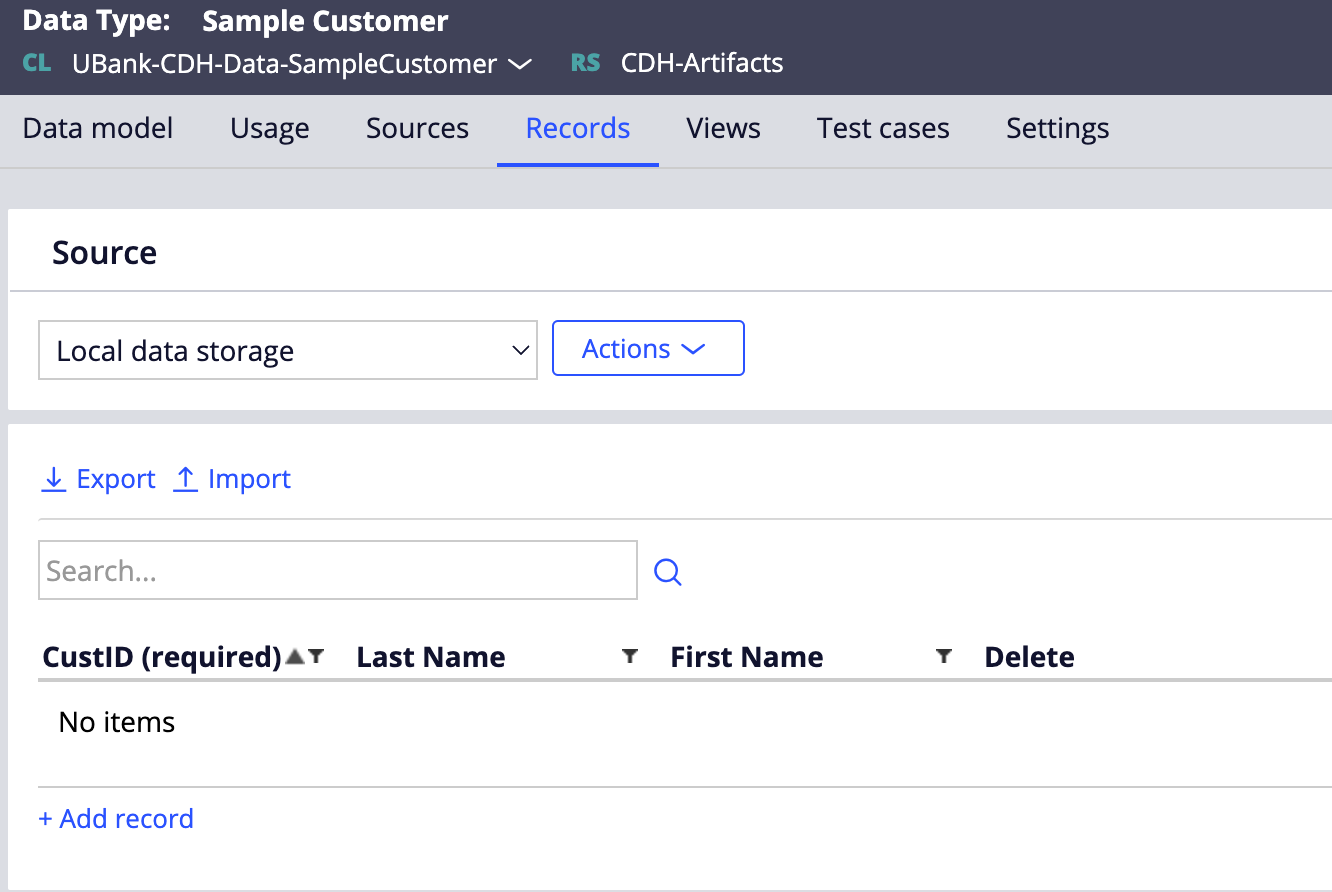

Database table source with the Cust ID as the primary key

Customer Employment Table

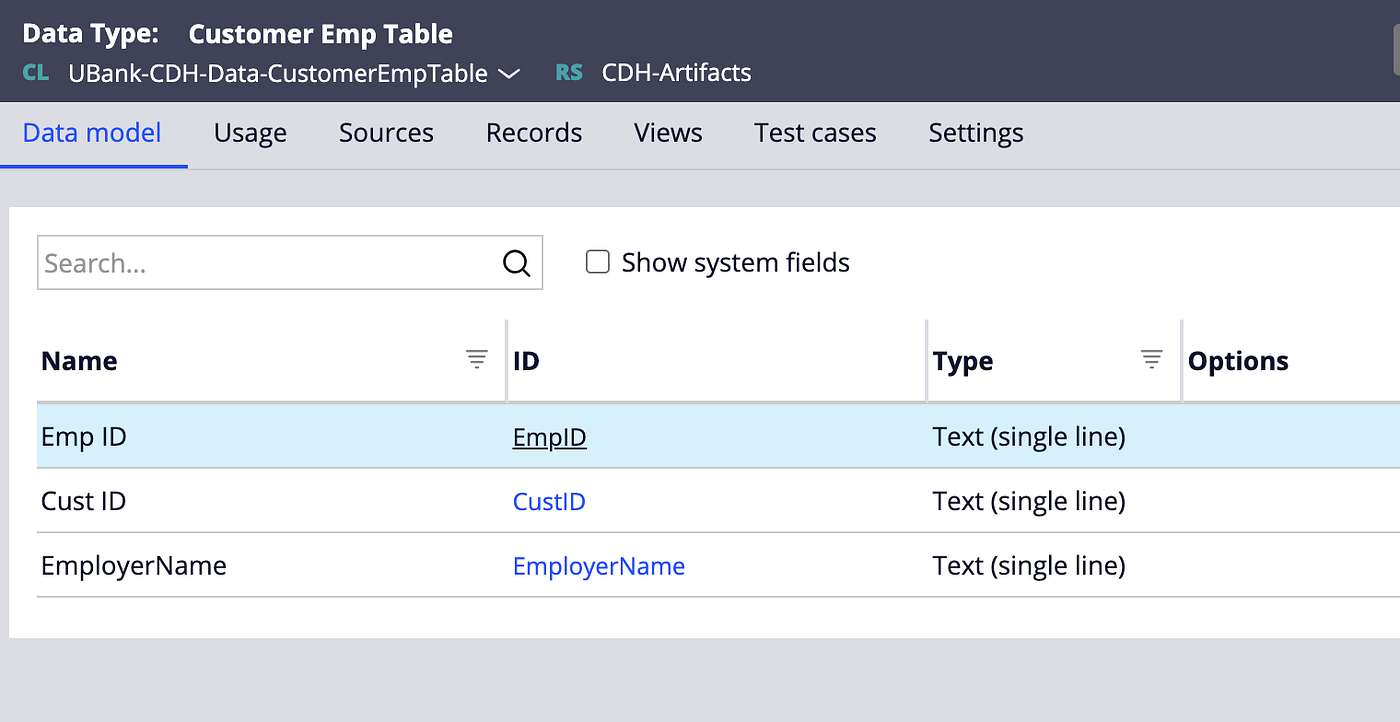

Required properties in the data model

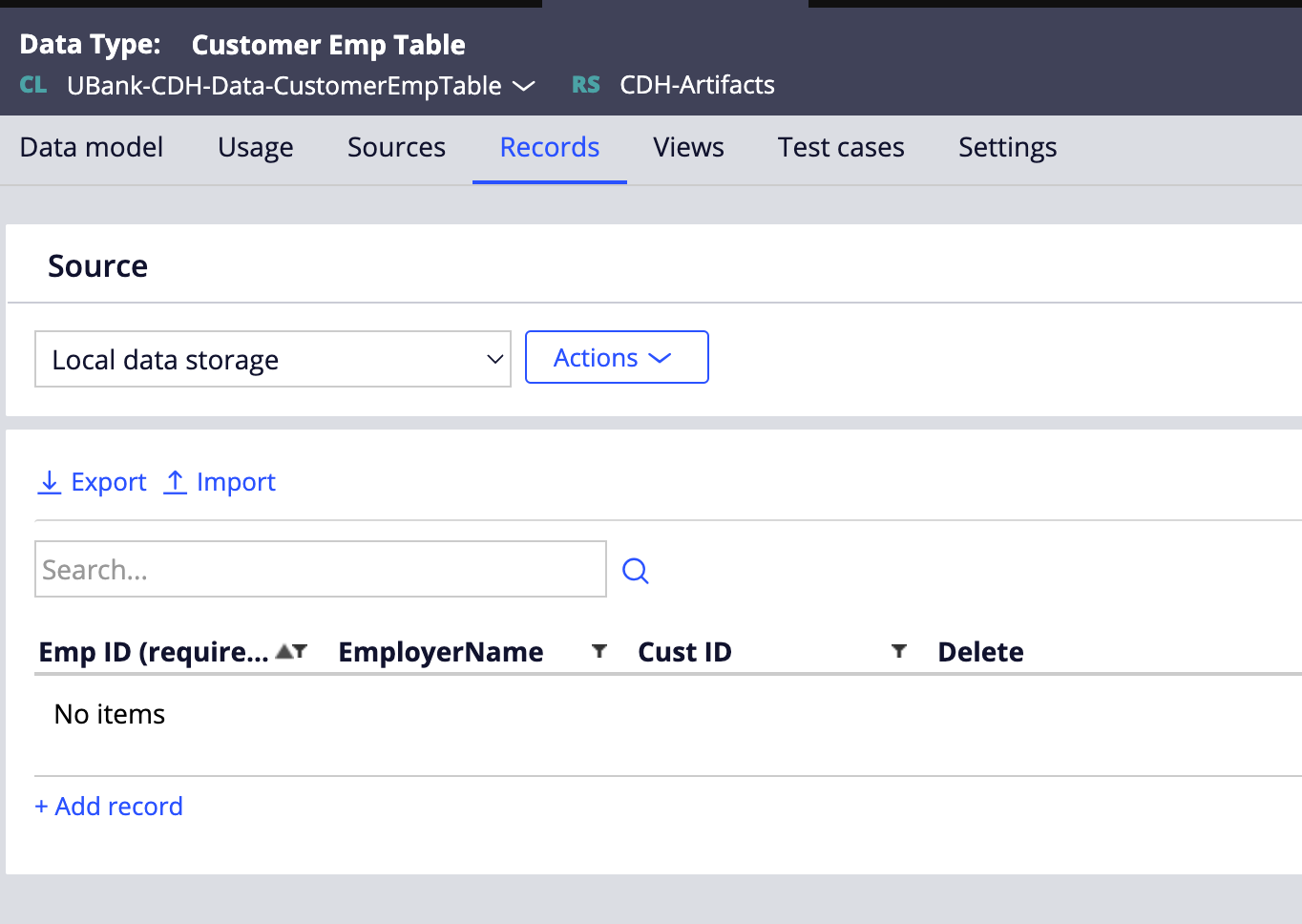

Database table source with the Emp ID as the primary key

Step 2: Configure the Monte Carlo Data Set

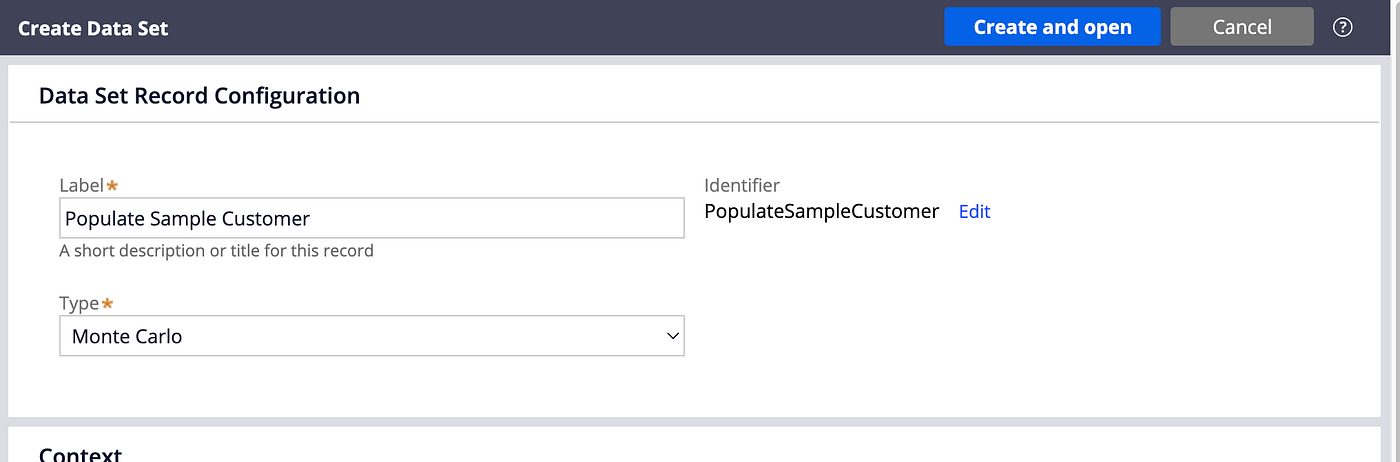

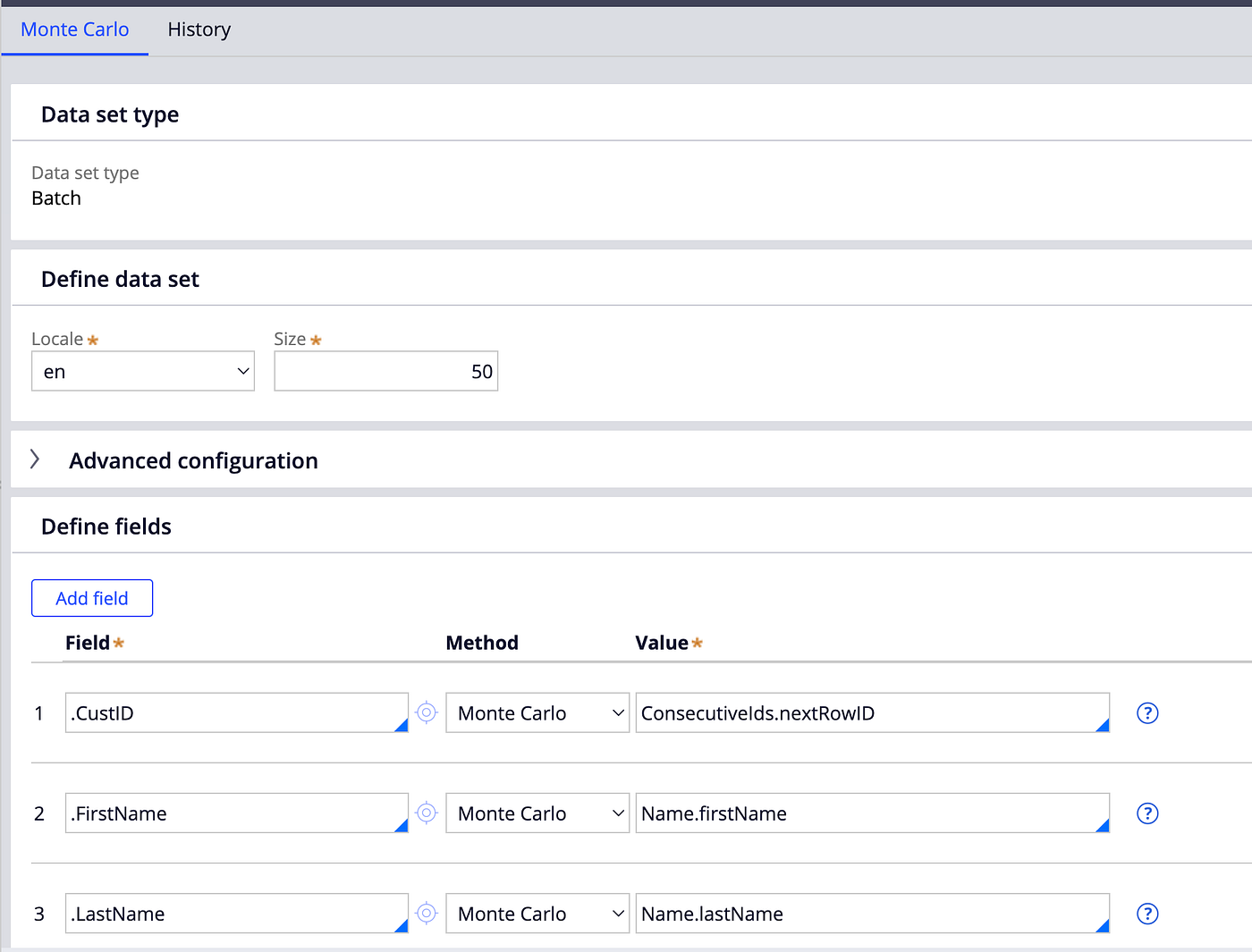

Create a dataset instance in the sample customer data class— with Monte Carlo as type

For each field “Method” — “Monte Carlo” and value is nothing but the provider. Example, Row ID, First Name, Last Name etc…

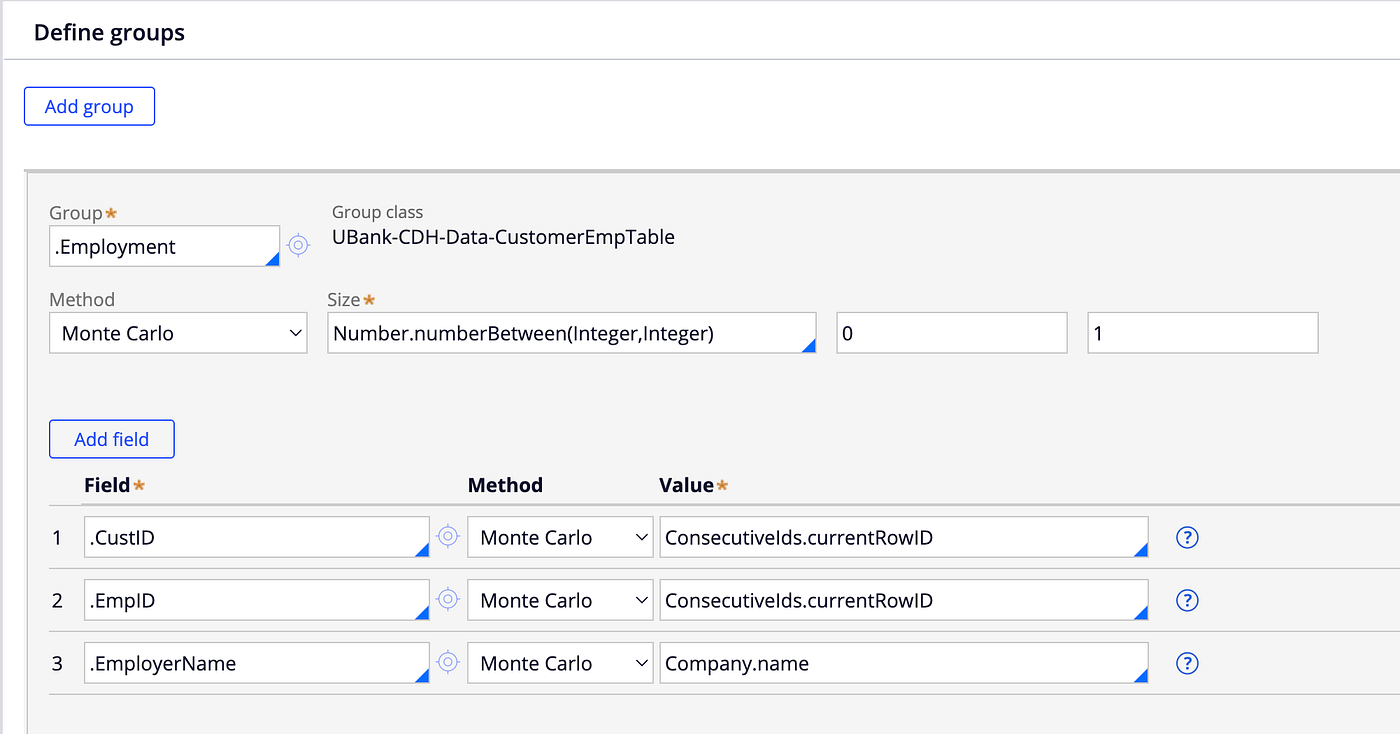

Note: Using the Monte Carlo data set — we can populate the embedded pages as groups. In this scenario, we are generating the sample customer record and respective employment record.

Monte Carlo data set execution

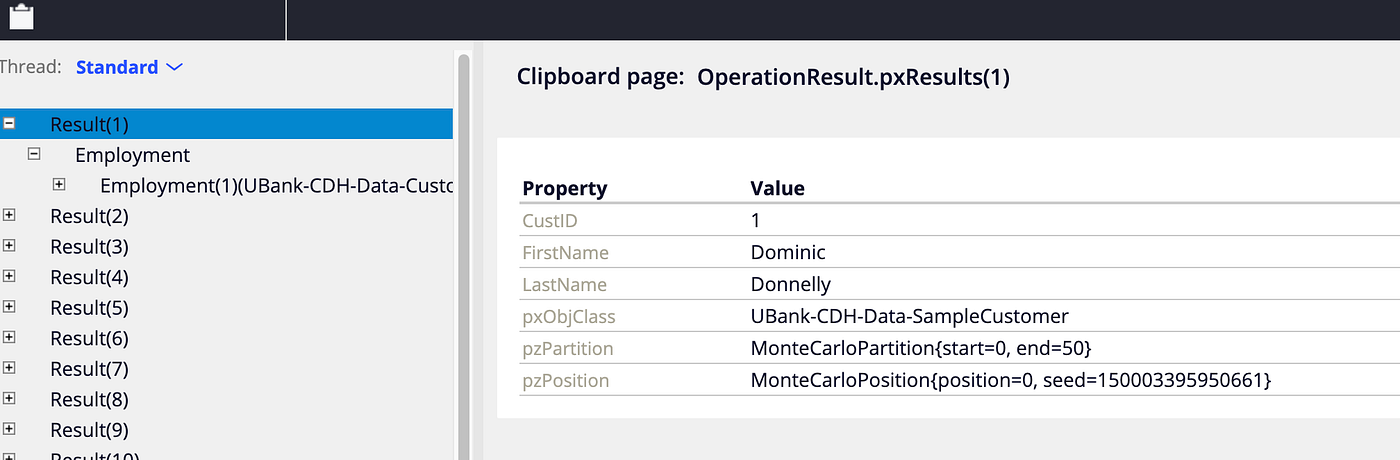

Run the data set and select the operation “Browse” to see the results.

Step 3: Create a dataflow to populate the customer and employment data tables

Now that the Monte Carlo Data Set is ready, it is time to populate the customer and respective employment data tables.

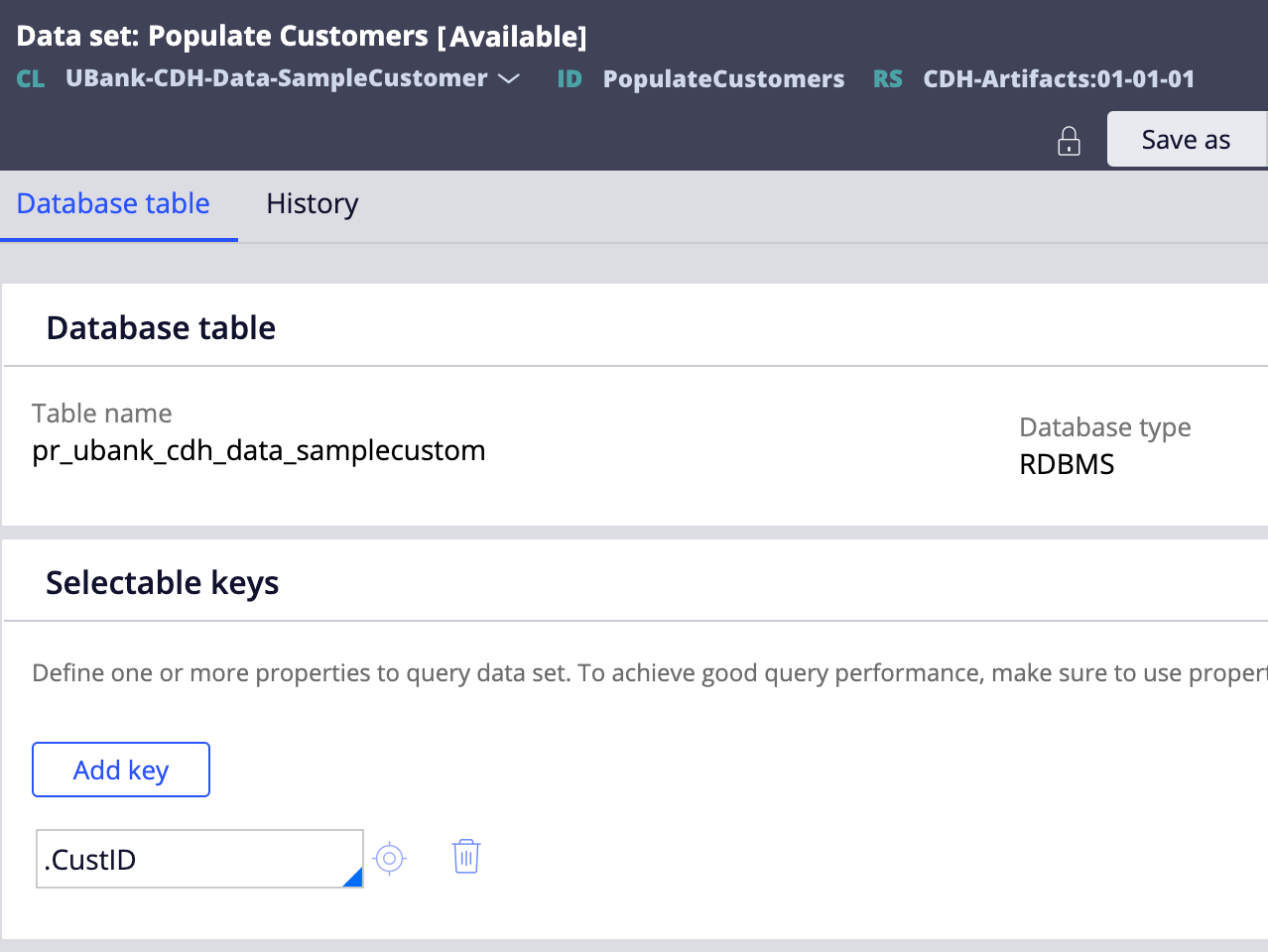

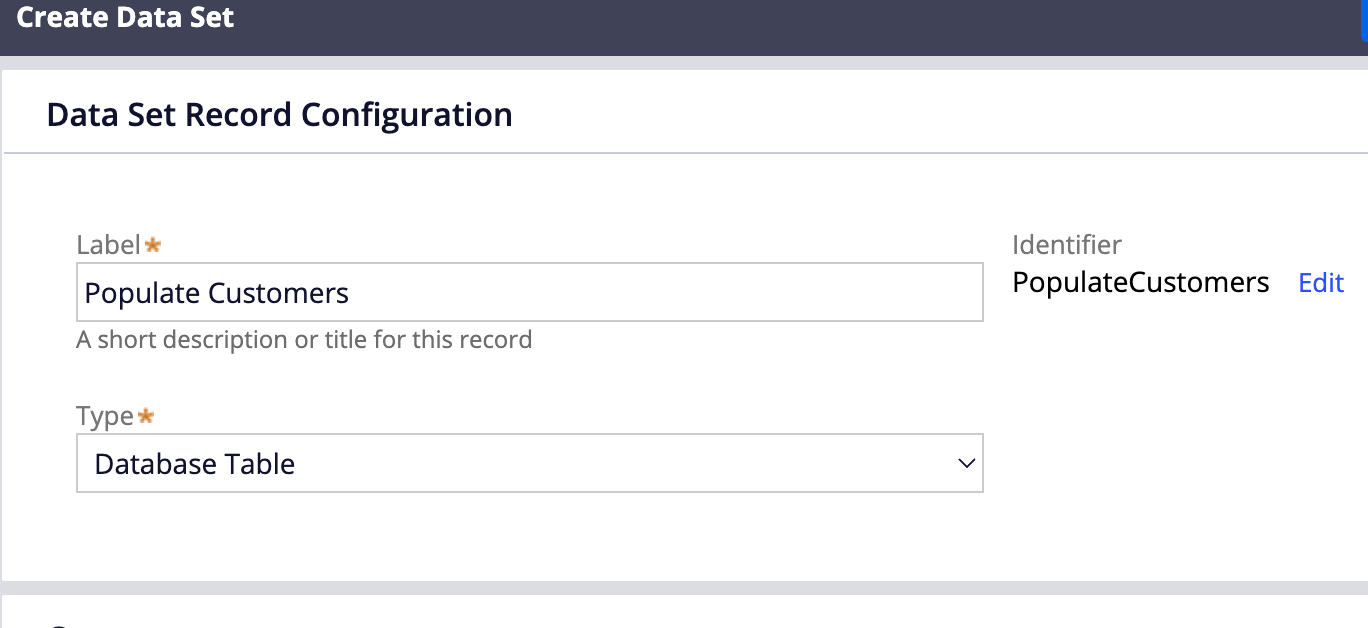

Create a customer data set with a database table as the type

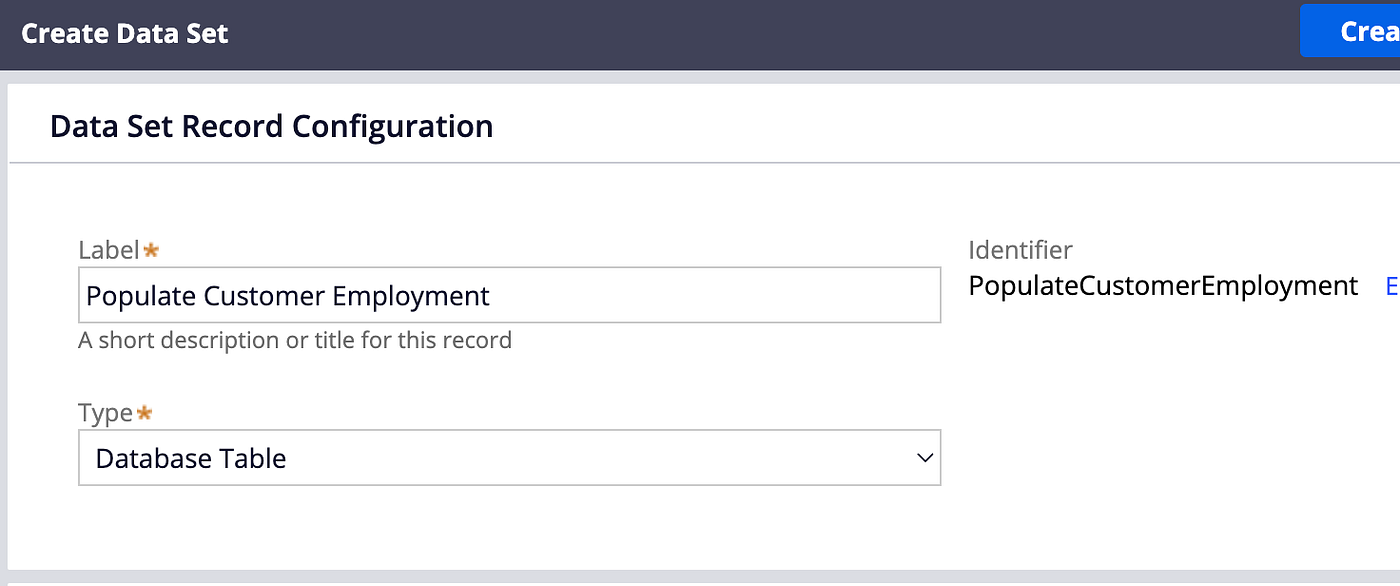

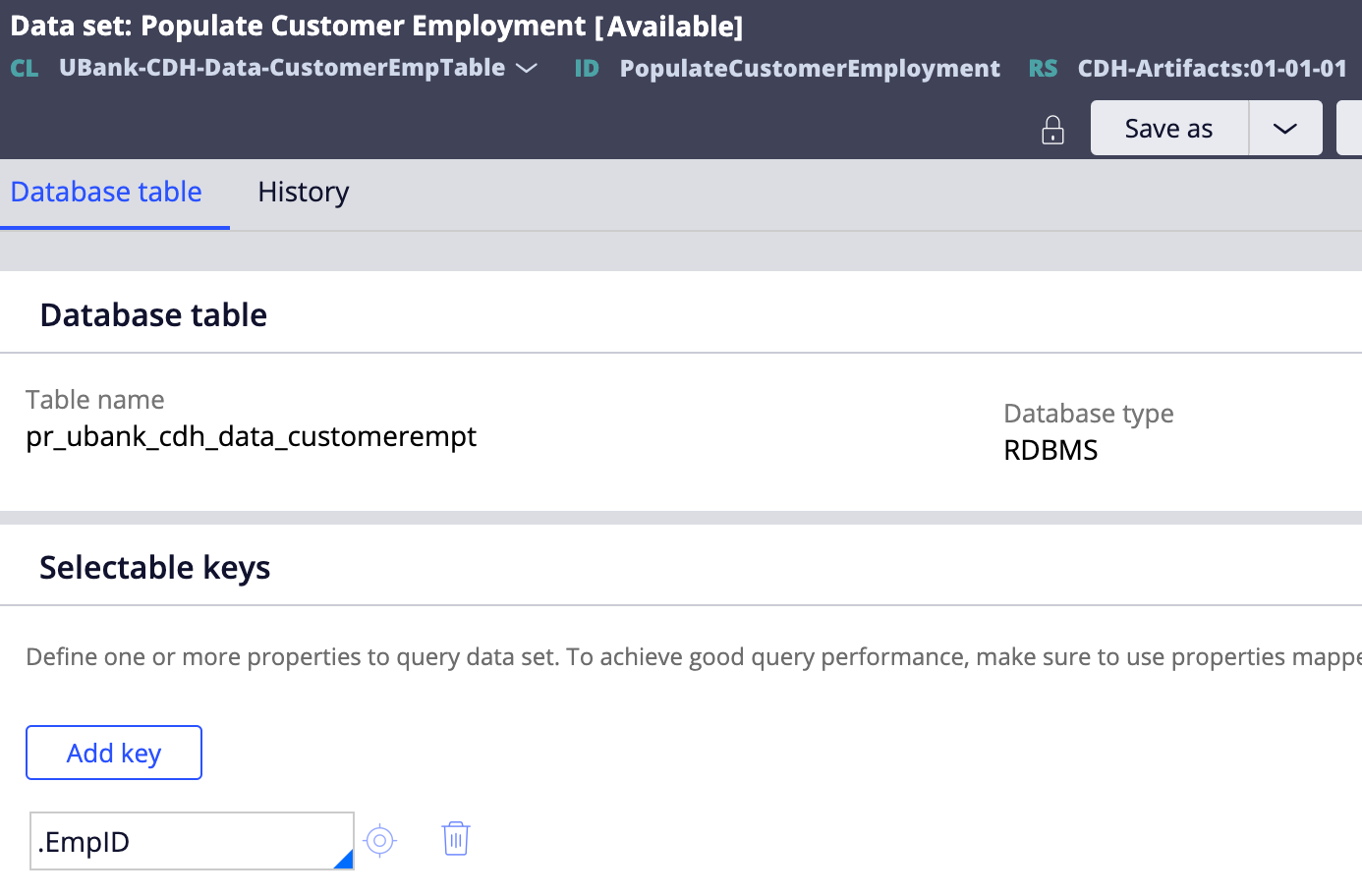

Create a customer employment data set with a database table as the type

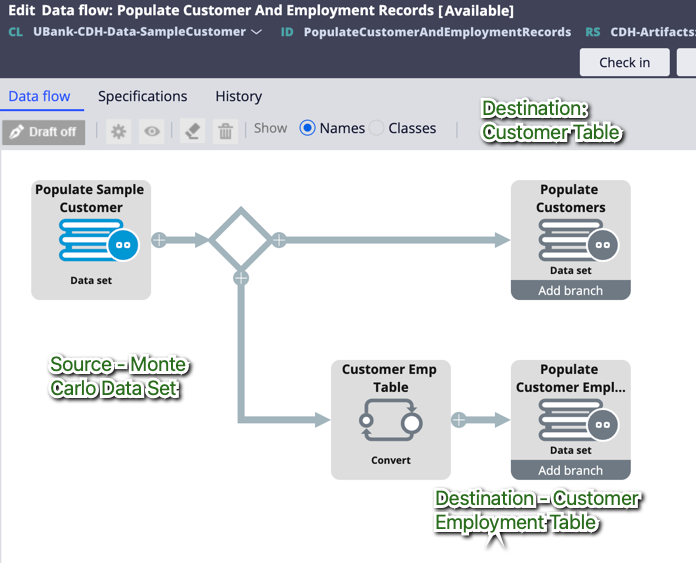

Create a data flow to populate these database table data sets from the Monte Carlo data set as the source and respective destinations as below

Note: Click on Add Branch on a destination shape to branch out to multiple outputs

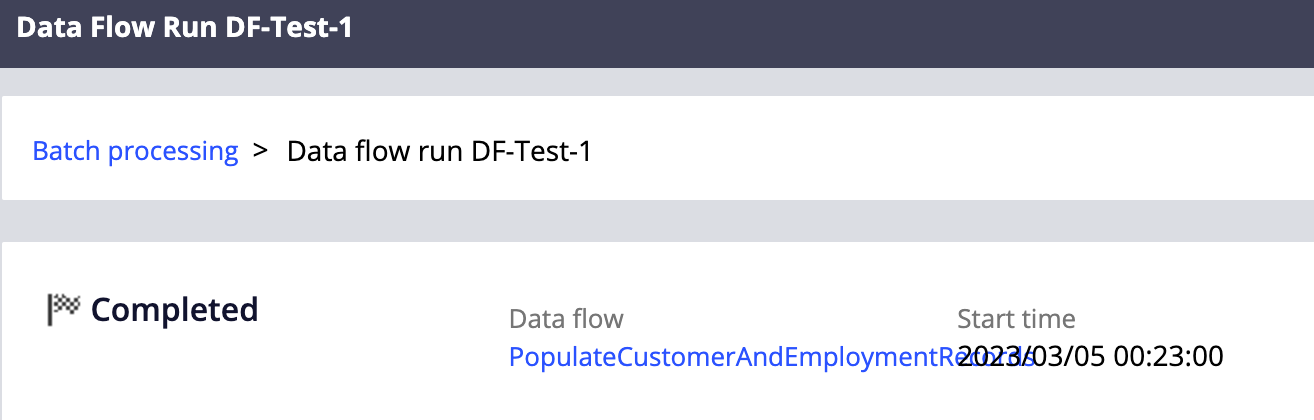

Execute the data flow to verify the sample records in the respective tables

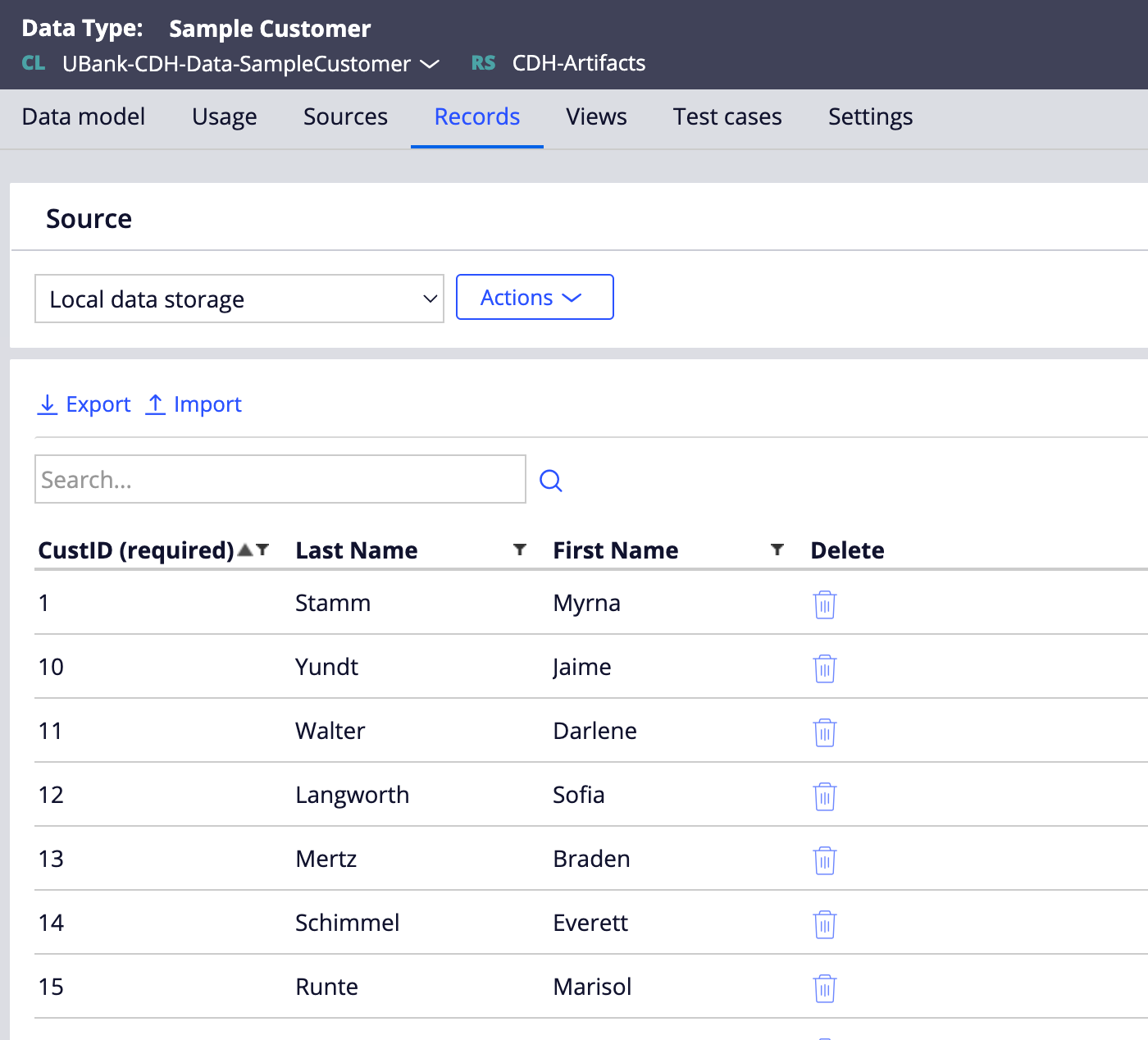

Open the customer table in the data designer

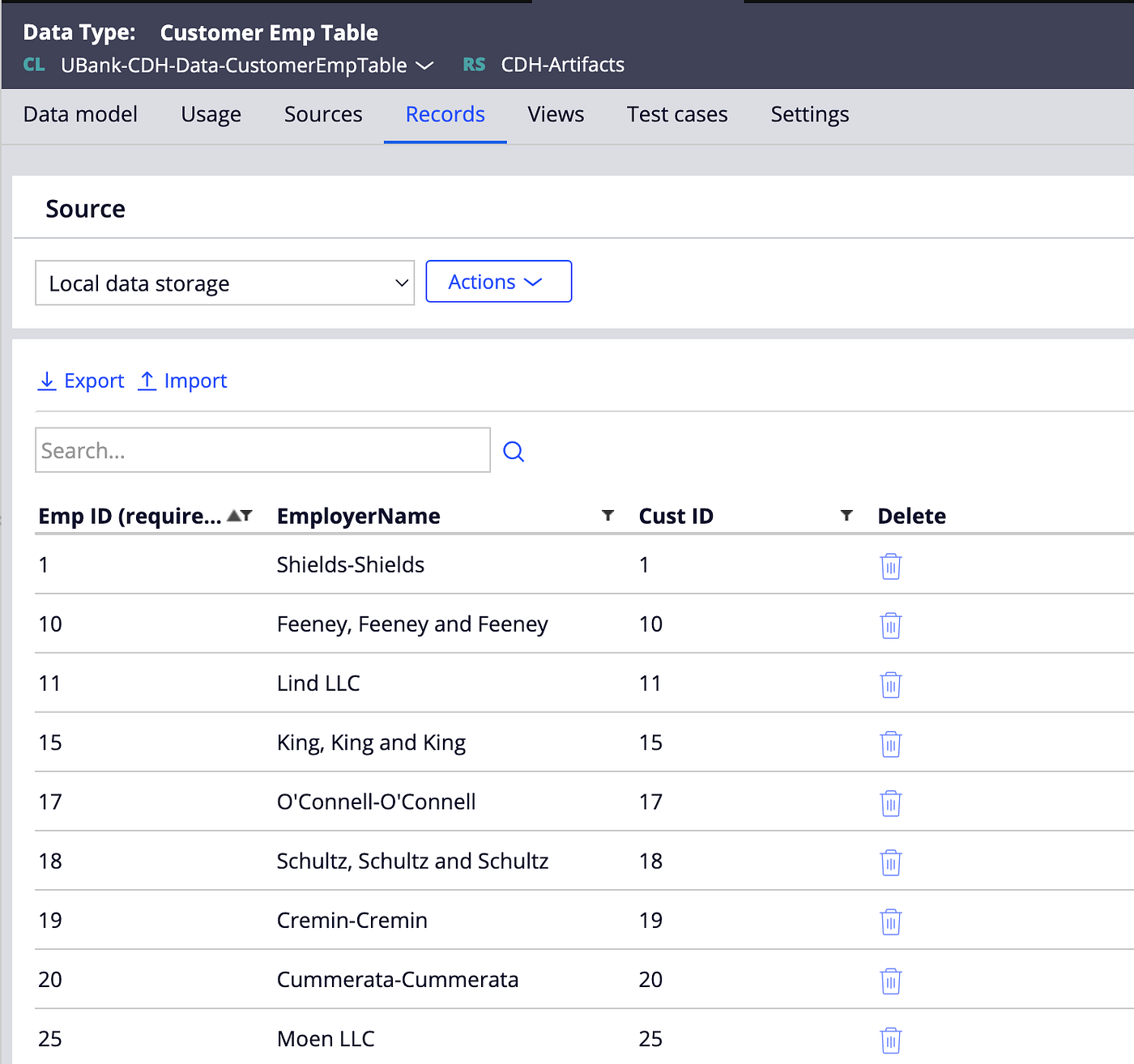

Open the customer employment table in the data designer

Step 4: Use Data Compose smart shape in a data flow to combine the data

Now that the data tables are populated with the sample records. We can combine this data during the runtime in a data flow using the Data Compose Smart Shape.

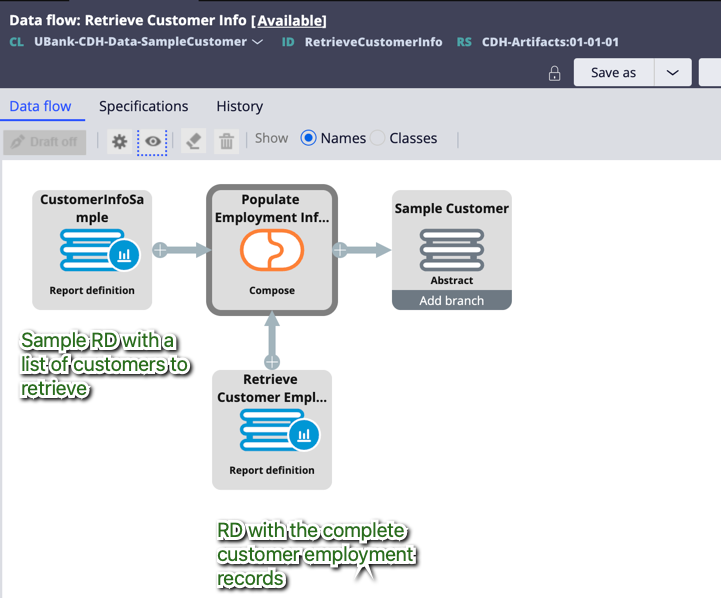

Create a data flow to combine the data into the embedded page

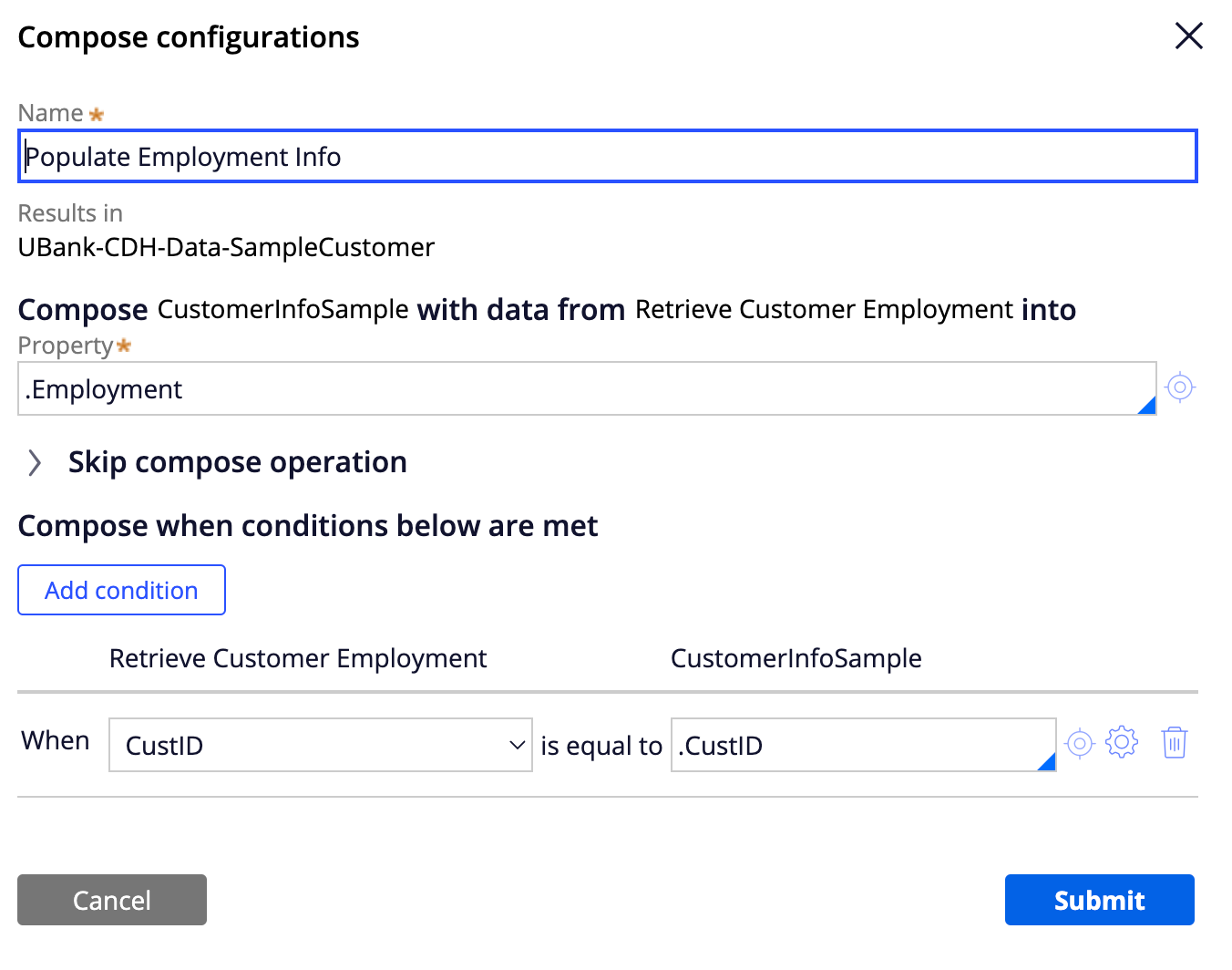

Configuration of the Data Compose smart shape — where cust id in both tables matches populates the employment page list embedded property.

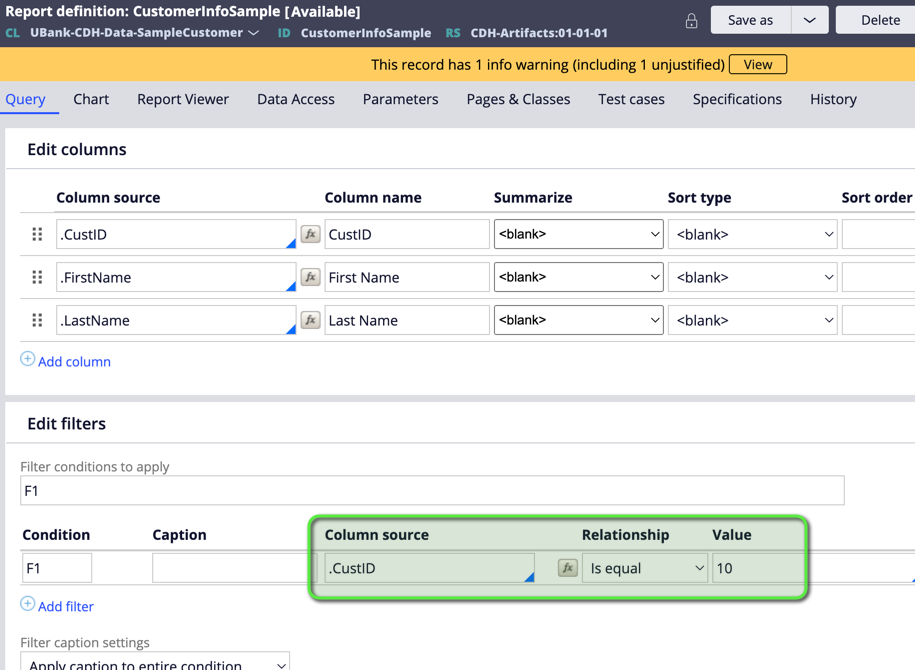

For now — let's retrieve only the customer info of the cust id “10”

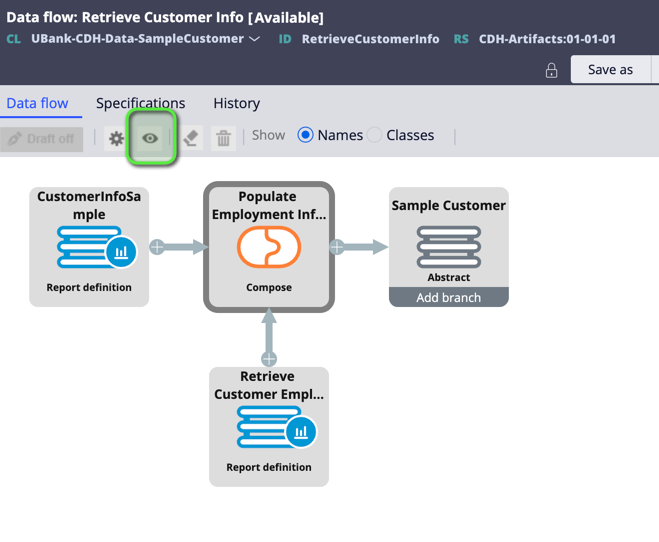

Select the Data Compose smart shape and click on the eye icon highlighted to see the result

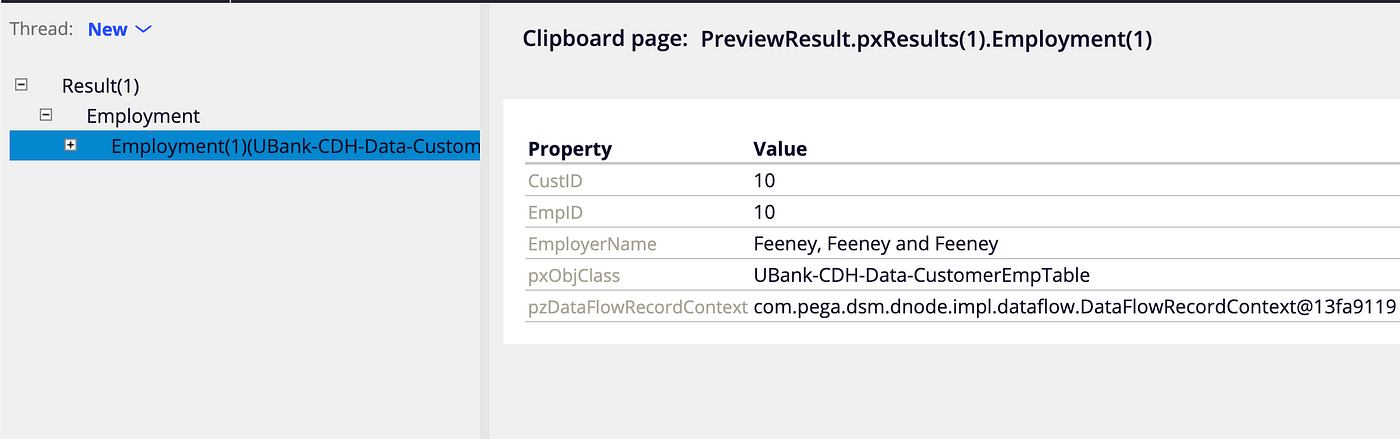

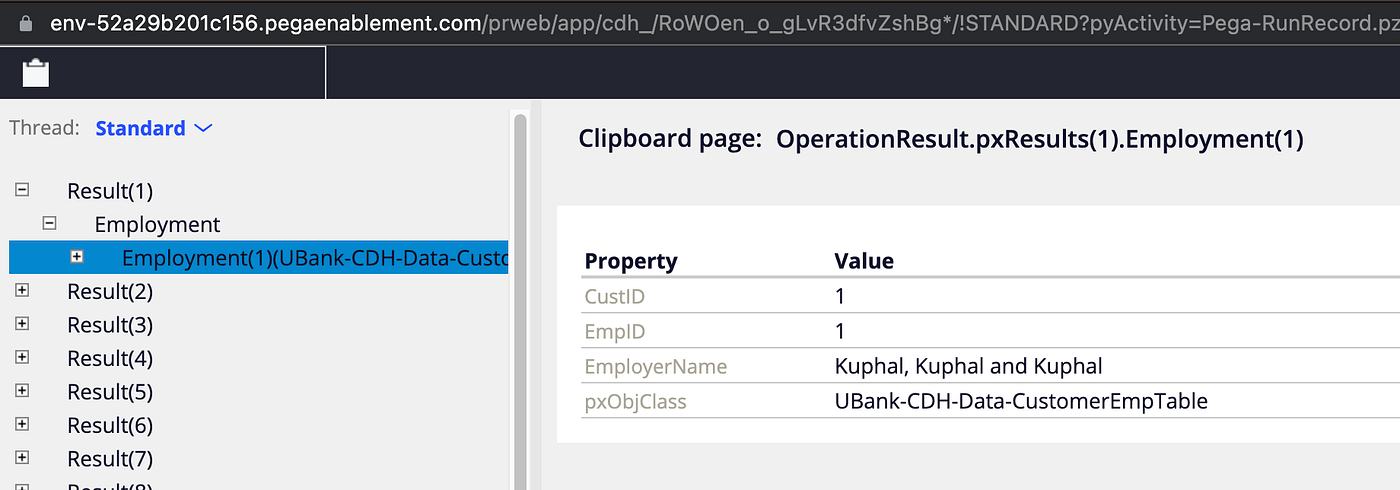

See the results — Customer record populated with the embedded page list well.

Hurrayyyyyyy — Congratulations :) Now you successfully understood the usage of the Monte Carlo Data Set and the usage of the Data Compose Smart Shape in PEGA. Happy Learning :)
